Klik hier voor een diavoorstelling



Zo goed als alle onderdelen voor hercules K125BW (V1 + V2) in voorraad.  Onderdelen die niet op de lijst voorkomen op aanvraag.  Gezien niet alle onderdelen steeds op voorraad zijn dient er rekening meegehouden dat alle prijzen indicatief zijn en er zich steeds prijsschommelingen (vooral bij de nieuwe onderdelen) kunnen voordoen.  Ook verschillende onderdelen voor hercules K180BW te verkrijgen.

(*) = niet in voorraad/ (tijdeijk) uitverkocht / op aanvraag

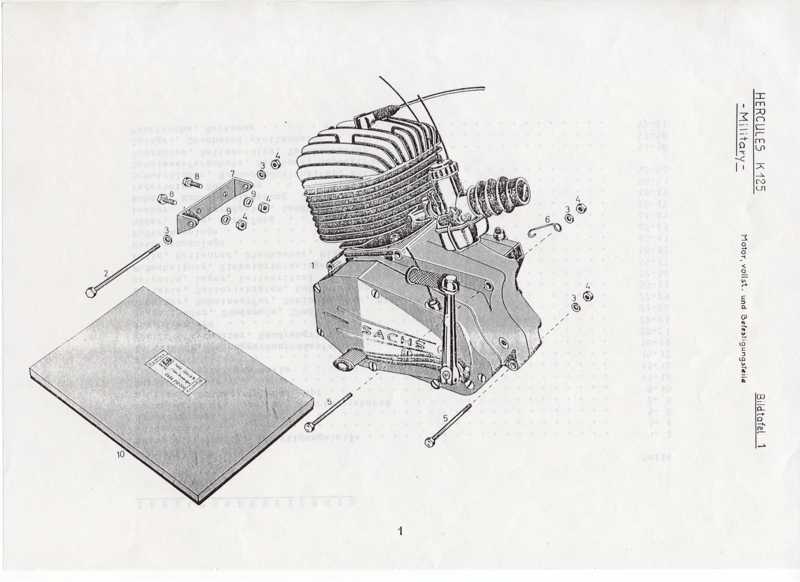

BILDTAFEL 1

1 Motor, getest, compleet met koppeling en ontsteking (bosch* of motoplat) 350,00
Motor, getest, compleet zonder ontsteking 275,00
2 Bout M8 x 150 0,30
5 Bout M8 x 100 0,30
6 Klem 0.50
7 Bevestigingsbeugel motor 1,30

BILDTAFEL 2

3 Dichting 2,60
5 Oliesluitschroef 2,70
6 Schroef 6x60 0,30
7 Schroef 6x70 0,40
9 Schroef 1,50
11 Dichtring 0,40
12 Kickstarteraanslagschroef M12 6,30
13 Dichtring 0,30
14 Olie-aflaatschroef 2,00

BILDTAFEL 3
1 Motordeksel rechts occ. in goeie staat 27,00
2 Schroef aansluiting kilometerteller occ. 1,20
3 Koppelbuisje occ. 0,50
5 Spindel metaal kilometertelleraandrijving 22,00
Spindel plastiek kilometertelleraandrijving 18,00
8 Kunststof rad voor kilometertelleraandrijving nieuw 14,50
Metalen rad voor kilometertelleraandrijving *
9 Metalen bevestiging voor nr. 8 occ. 2,20
10 Dichting occ. 1,00
12 Ontluchtingsnippel occ. 1,00
14 Dichting rechts nieuw 2,00
15 Schroef 6 x 60 0,30
16 Motordeksel links nieuw 27,00
16 Motordeksel links occ. compleet met inbouwdelen BT 7 - 11-> 19 27,00
17 Dichtring 0,30
18 Dekselschroef 1,90
20 Dichtring 4,50
21 Dichtring voor grijze schroef 0,30
Dichtring voor zwarte schroef 0,60
22 Sluitschroef plastiek grijs 3,50
Sluitschroef plastiek zwart (groot) 4,00
23 Schroef 6 x 40 0,20
24 Dichtring koper 0,40
25 Schroef 6 x 50 0,30
26 Schroef 6 x 60 0,40
27 Dekseldichting links 2,60

BILDTAFEL 4
1 Krukas brons of aluminium occ. 90,00
2 Naaldlager nieuw 17,00
Naaldlager occ. 7,00
Koperen buisje (bij oudere modellen met alu krukas ter vervanging naaldlager ) 14,00
3 Half maantje 1,00
5 Kogellager occ. 12,00
6 Dichtring 7,20
8 Moer M 10x1 (linkse draad) occ. 3,40
9 Kogellager occ. 5,00
11 Aandrijftandwiel occ. 5,00
13 Zeskantmoer M 14x1,5 occ. 0,50



BILDTAFEL 5

3 Cylinderkop occ. 23,00
4 Cylinder occ. goeie staat 75,00
7-9 Piston + ringen 54,5 /50,0 / 55,5  nieuw 120,00
7-9 Piston + ringen SACHS red point  54,0  (53.93)   nieuw 120,00
7-9 Piston + ringen / 54,0 / 54,5 / 55.0 / 55,50 Wiseco nieuw 120,00
8 Pistonring boven 54.0 - 54.5 - 55.0 - 55.5 12,20
9 Pistonring onder 54.0 - 54.5 - 55.0 - 55.5 12,20
8+9 Pistonringset 54.0 - 54.5 - 55.0 - 55.5 20,00
10 Pistonpen nieuw 7,00
10 Pistonpen occ. 3,50
11 Bevestigingsring nieuw 1,00
12 Dichting nieuw 2,80

BILDTAFEL 6
1 Koppelingsnaaf occ. 7,50
5-11 Koppeling nieuw *
5-14 Koppeling occ. (getest) 50,00
7 Drukveer 1,00
11 Tandwiel koppeling occ. 10,00
13 Clips 16x1,5 0,60
14 Drukplaat occ. 3,20

BILDTAFEL 7
1 Koppelingshendel compleet 14,00
2 Bevestiging koppelingshendel nieuw 10,00
4 Koppelingshendel 6,50
8 Verstelschroef occ. 1,50
9 Koppelingskabel 12,00
9 Koppelingskabel K180BW (ook bruikbaar voor K125BW - sterkere kwaliteit) 13,00

BILDTAFEL 8
1 Carburator  BING 53 1/24/184 nieuw 145,00
Carburator BING 53 1/24/170 occ. 70,00
Carburator BING 53 1/24/184 occ. 70,00
29 Kurkdichting carburator BING 53 nieuw 3,50
Verschillende andere  occ. en nieuwe onderdelen verkrijgbaar

BILDTAFEL 9
4 Luchtfilter Purolator V1 (voor metalen behuizing) 16,00
Luchtfilter V2 (voor plastiek behuizing) 9,00
5 Luchtfilterhuis middenstuk metaal occ. 3,00
10 Luchtfilterhuis onderstuk metaal occ. 10,00
Luchtfilterhuis metaal compleet occ. 23,00
Luchtfilterhuis plastiek compleet occ. 15,00
17 Spanband 1,00
18 Rubber aansluitstuk carburator occ. 2,50

BILDTAFEL 10
1 Benzinetank occ.  in goede staat 65,00
 2 Embleem sticker 4,00
3 Filterzeef voor benzinetank 4,00
4 Benzinetankdeksel occ. 5,00
5 Dichting kurk voor benzinetankdeksel nieuw 2,20
Dichting rubber voor benzinetankdeksel nieuw 2,20
11+13 Bout + moer M 10x100 1,00
14 Benzinekraan nieuw 15,00
17 Gasgreep compleet nieuw verwarmd (V2) 32,00
Gasgreep occ. 20,00
19 Rubberbescherming  5,50
26 Handvat rubber 23.5 MAGURA 9,50
27 Gaskabel 11,00
28 Chokehendel occ. 6,50
29 Chokekabel 7,50

BILDTAFEL 11
4 Bevestiging uitlaat occ. 8,00
5 Bevestiging uitlaat occ. 7,00
6 Uitlaat occ. 65,00
7 Uitlaat voorste deel occ. 40,00
9 Uitlaat eindstuk 30,00
13 Uitlaatklem occ. 3,00
14 Uitlaatbocht occ. 30,00
15 Zeskantmoer uitlaat occ. 1,30
16 Dichting uitlaat nieuw 2,50
17 Uitlaatrooster occ. 18,00
18 Verzenkrondel uitlaatrooster occ. 0,40
19 Schoef uitlaatrooster 6x10 0,30

BILDTAFEL 12
4

Vliegwiel Bosch occ.

*60,00
4

Vliegwiel Bosch nieuw

85,00
Vliegwiel Motoplat occ. 50,00
- Poulietrekker voor vliegwiel 9,00
5 Ontsteking Bosch nieuw 125,00
Ontsteking Bosch occ. *75,00
Ontsteking Motoplat occ. 70,00

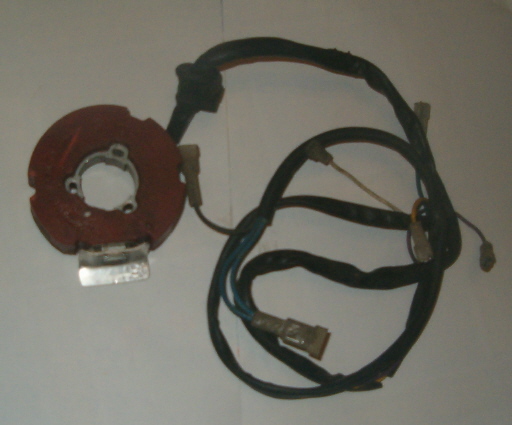

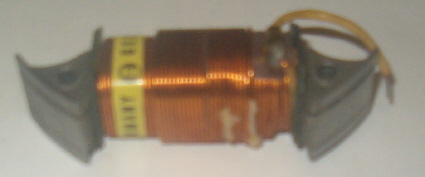

6 Ontstekingsspoel nieuw 25,00
8 Spoel remlicht nieuw 23,00

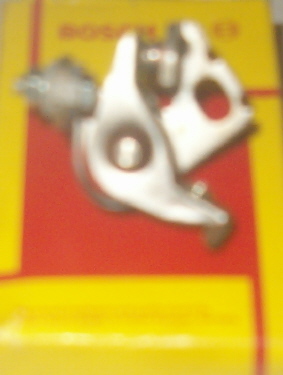

11 Aanbouwset kontaktpunt 0,40
12 Vise-platinees 12,50
14 Bevestigingsplaat voor Boschontsteking 5,00
Bevestigingsplaat voor Motoplatontsteking 5,00
15 Kondensator nieuw 9,00
23 Spoel achterlicht nieuw 23,00
25 Spoel voorlicht nieuw 24,00
28 Bobijn occ. 35,00
Bobijn nieuw 40,00
Bobijn MOTOPLAT occ. 50,00
36 Bougiekop nieuw 5,00
37 Bougie 2,80

BILDTAFEL 13
1 Contactschakelaar 6-polig nieuw 19,00
Contactschakelaar 8-polig (V2) occ. 15,00
4 Contactsleutel nieuw 2,75
5 Lichtschakelaar Hella nieuw 30,00
7 Richtingaanwijzerschakelaar Hella nieuw 30,00
Richtingaanwijzerschakelaar Hella occ. 15,00

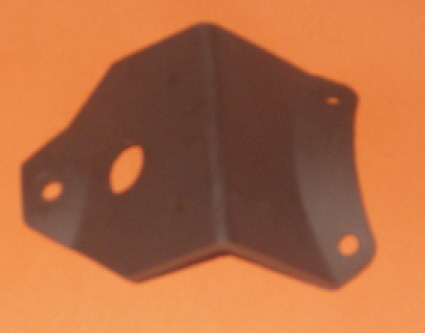

8 Bevestiging links 3,50
9 Bevestiging rechts 3,50
13 Bevestiging remschakelaar occ. 1,20
14 Remschakelaar nieuw 9,00
17 Richtingaanwijzer rond 20,00
Richtingaanwijzer vierkant (V2) occ. 9,00
21 Richtingaanwijzerglas Hella 5,90
22 Schroefje voor richtingaanwijzerglas M3 x 10 0,20
23 Lampje richtingaanwijzer 6V 2,50
24 Richtingaanwijzerregelaar occ. 9,90
24 Richtingaanwijzerregelaar nieuw 13,00
26 Achterlicht  zeshoekig occ. 15,00
Achterlichtglas zeshoekig nieuw 12,00
Rubberbevestiging voor rechthoekig achterlicht nieuw 5,00
37 Lampje remlicht 6V 10W 1,80
38 Lampje achterlicht 6V 4W 1,50

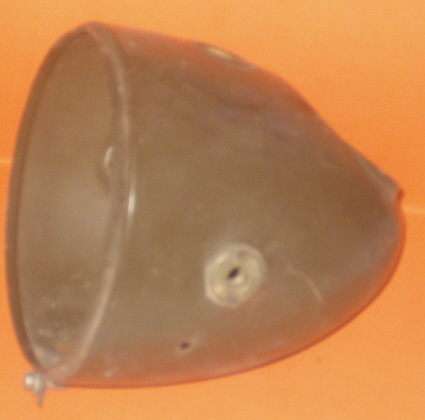

40 Voorlichtbehuizing 130 mm occ. 35,00

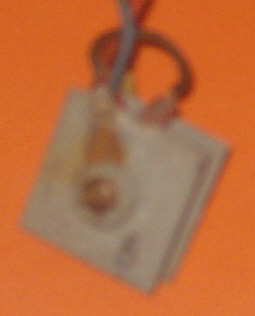

41 Gelijkrichter occ. 9,90
Diodengelijkrichter nieuw 9,00

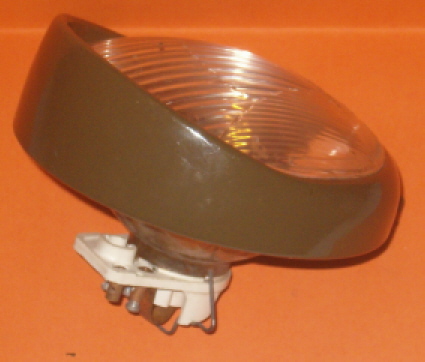

47 Voorlichtring met glas en reflector 130 mm occ. 47,00
48 Voorlichtring occ. 25,00

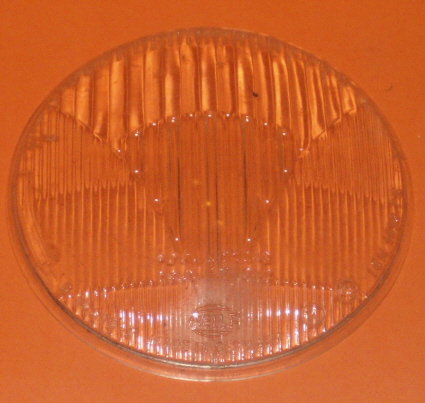

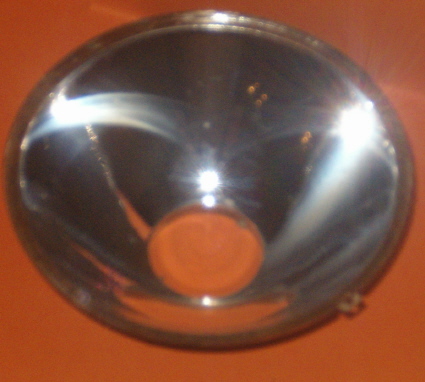

51 Voorlichtglas 12,00

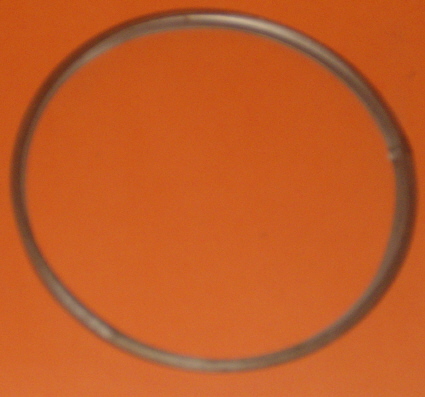

52 Gummidichtring occ. 1,50
53 Reflector occ. 15,00
55 Bevestigingsklem 0,50
56 Lamphouder 6,00
57 Lamp voorlicht 6V 35/35 4,60
58 Claxon occ. 6,00
Claxon nieuw(chroom) 10,00

BILDTAFEL 14

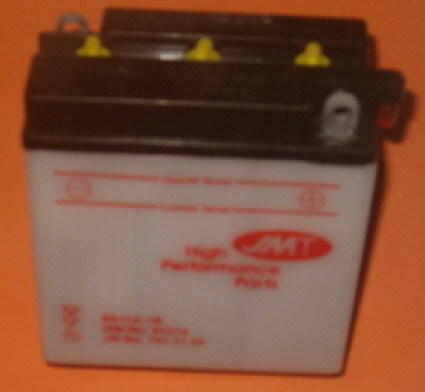

1 Batterij 6V12ah 6N11A-1B 20,00
3 Batterijhouder occ. 15,00
7+8 Spanband batterij  nieuw 14,00
7 Spanband batterij  occ. 7,50
8 Moertje voor spanband 0,75
N.A. Afdekking batterij rubber nieuw 7,00
Afdekking batterij rubber occ. 4,30
9 Hoofdkabelboom V1 nieuw 42,00
9 Hoofdkabelboom V2 nieuw 53,00
28 Zekering 8A 0,50

BILDTAFEL 15
18 Hoofdschakelas occ. 24,00

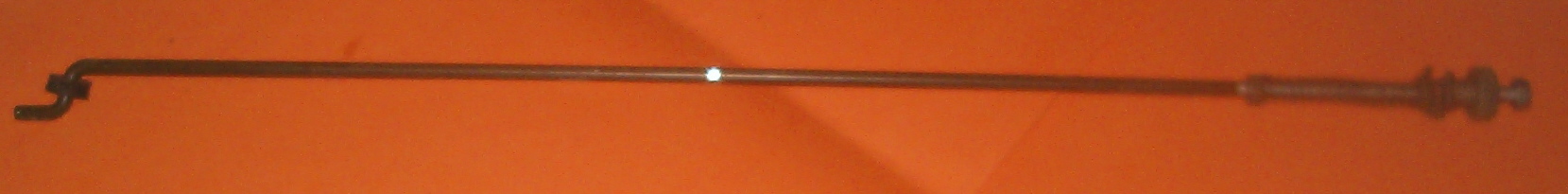

21 Schakelstang occ. 10,00
31 Voortandwiel 13 tanden 24,00
Voortandwiel 14 tanden 26,50
32 Dichtring 9,50
verschillende tweedehands (+ op aanvraag ook nieuwe) onderdelen te verkrijgen

BILDTAFEL 16
1-15 Schakelmof occ. 20,00
Schakelmof occ. 20,00
15 Clips 0,50
16 Koppelingspedaal 12,00
18 Rubber koppelingspedaal 6,00
19 O-ring 1,10

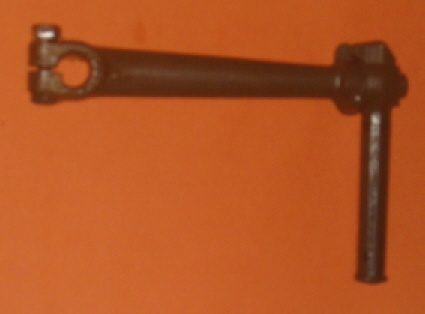

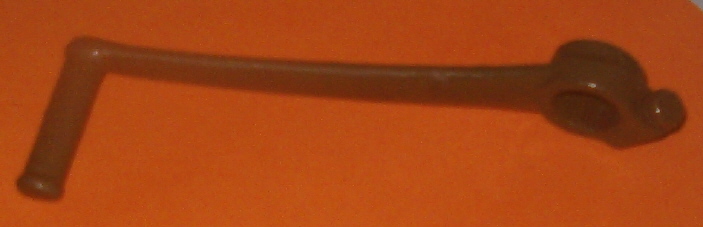

27 Kickstarter recht nieuw 40,00
Kickstarter occ. (verschillende modellen) 25,00
29 Kickstarterrubber - maismotief (oude uitvoering) 6,00
Kickstarterrubber  met 7 ribbels (nieuwe uitvoering) 6,00
verschillende occ. onderdelen verkrijgbaar

BILDTAFEL 17
1 Tandwielhouder occ. 15,00
2+4 Bout + moer achtertandwiel 0,50
3 Bevestigingsplaatje 2,60
11 Asbevestiging lang 12,00
12 Asbevestiging kort 7,50
13 Zeskantmoer M10 x 1voor asbevestiging occ. 3,50
14+15 Ketting + slot nieuw 114 schakels 20,00
15 Kettingslot 1,10

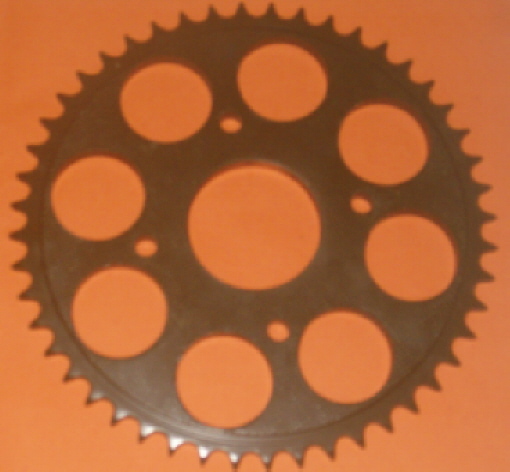

16 Achtertandwiel 48 tanden nieuw 35,00
17 Kettingspanner nieuw  *8,50

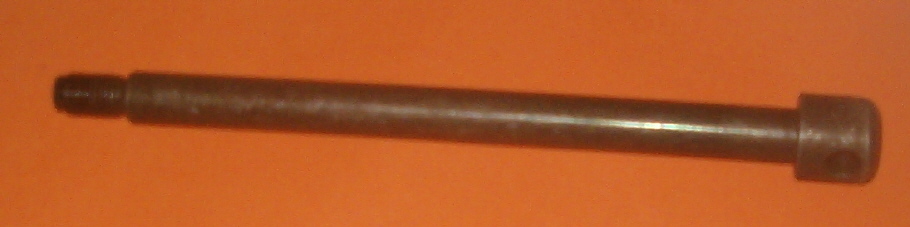

21 Vooras nieuw 18,00
Vooras occ. 9,00

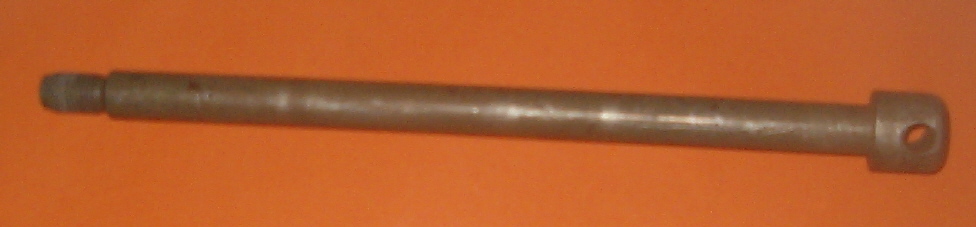

22 Achteras nieuw 18,50
Achteras occ. 9,00
24 Zeskantmoer  M12 x 1,5 0,65

BILDTAFEL 18

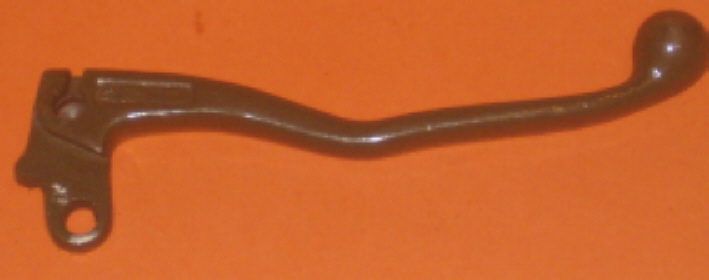

1 Remhendel compleet Magura 17,00
2+3 Bevestiging remhendel nieuw 10,00
5 Remhendel Magura 10,00
8 Verstelschroef 1,50
9 Remkabel nieuw 12,00
11 Remhouder Sachs occ. 15,00
12 Remblokken compleet met veertjes nieuw 30,00
13 Veertje voor remblokken 1,00
14 Hendel voor remhouder occ. 7,70
 23 Afstandsblokje occ. 5,00


BILDTAFEL 19

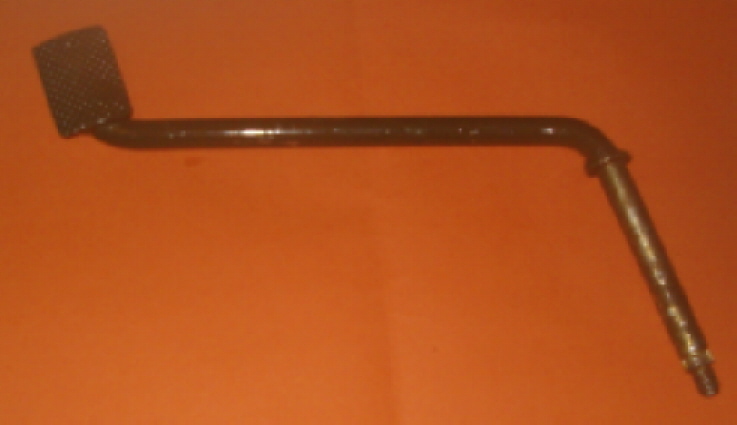

1 Rempedaal occ. 10,00
2 Plastiekje rempedaal nieuw 5,00
8 Veer rempedaal 5,40
9-14 Remstang compleet 20,00
15 Remhouder achterwiel Sachs nieuw 29,00
Remhouder achterwiel Sachs occ. 19,00
16 Remblokken compleet met veertjes nieuw 30,00
17 Veertje voor remblokken 1,00
18 Hendel voor achterste remhouder occ. 9,50
23 Afstandsblokje achterwiel occ. 6,00

BILDTAFEL 20
1 Wiel occ. 55,00
4+5 Spaak + nippel nieuw 0,40
12 Gummidemper nieuw 2,70

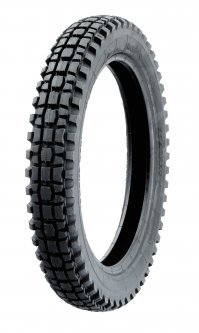

14 Buitenband HEIDENAU K37      3.25 * 18 62,00
15 Binnenband 12,50
18 Ventielkapje met ventieluitdraaier 0,80

BILDTAFEL 21
1 Handvat links Magura nieuw 9,50

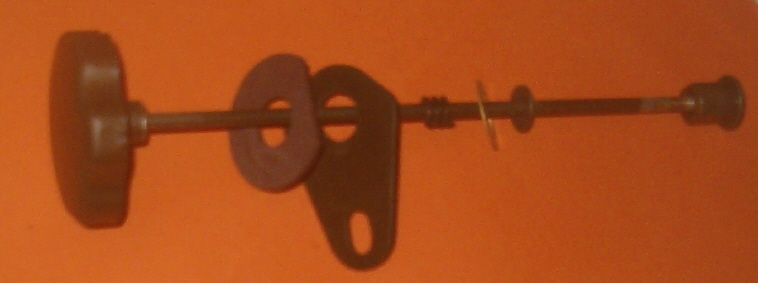

2 Stuur occ. goede staat 15,00
5 Stuurbevestiging nieuw 7,00
8-9 Stuurbout + rondel 3,00
10 Stuurplaatje occ. 5,00
11 Voorvork occ. goede staat 120,00
Voorvork onderste deel occ. 7,20
20 Demper 10,00

BILDTAFEL 22
1 Kader occ. zonder papieren 50,00
Kader occ. met papieren (verschillende bouwjaren in voorraad) 250,00
14 Motorbescherming occ. 18,00
18 Typeschildje blanco nieuw 14,40

BILDTAFEL 23
1 Bout M10 x 165 + moer M10 0,50
3 Zeskantmoer M10 0,20
4 Bout M10 x 45 0,25
5 Vering achter nieuw *

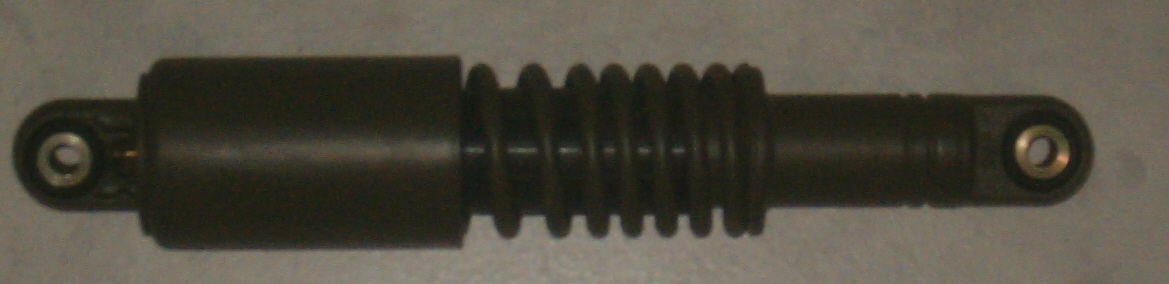

Vering achter occ. 28,00
6 Bout  M10 x 40 0,25
9 Achterbrug occ. 40,00
10 Bout M8 x 50 0,25
12 Naaldlager 5,00
13 Buisje occ. 4,00
14 Zeskantmoer M8 0,20
15 Voorbrug occ. 8,00
16 Bout M10 x 35 0,25
17 Zeskantmoer M10 0,20
18 Voorvering V1 occ. 30,00
18 Voorvering V1 occ. 30,00
Voorvering V1 nieuw 62,00

Voorvork V2 occ. 95,00





BILDTAFEL 24
1 Kentekendrager occ. 8,20
7 Achterspatbord occ. 25,00
11 Bevestigingsbeugel achterspatbord 3,00
16 Bevestigingsbeugel voorspatbord 2,50
18 Voorspatbord occ. 24,00
20 Spatbordbeugel occ. 8,00
22 Kettingbeschermer occ. 26,00
27 Kunsstof kettingglijstuk nieuw 10,00

BILDTAFEL 25

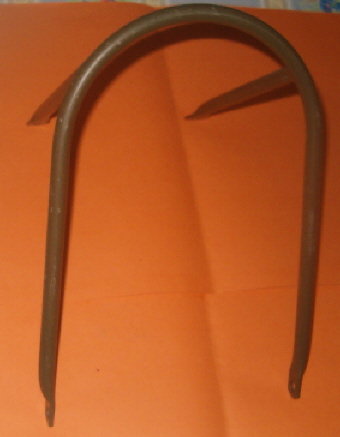

1 Lampbeugel 25,00
2-5 Moer + bout voor lampbeugel 1,00
6 Zitbank occ. V1 goeie staat (met inruil) 65,00
Zitbank occ. V2 goeie staat (met inruil) 65,00
Zitbankovertrek V1 of V2 nieuw 26,00
13 Bagagerekje occ. 28,00
14 Bagagerekje bovenstuk occ. 15,00
15 Bagagerekje onderstuk occ. 16,00
24 Bevesting voor zijtas occ. 18,00

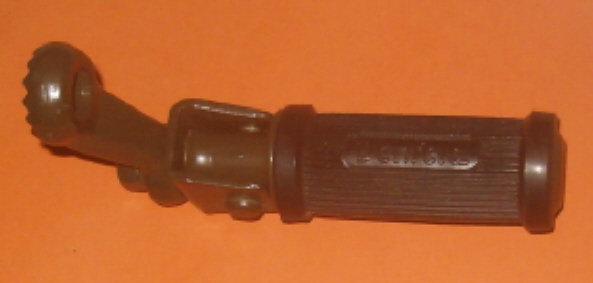

25 Voetsteun achter nieuw 14,00
Voetsteun achter occ. 10,00
27 Bout M12 x 30 0,25

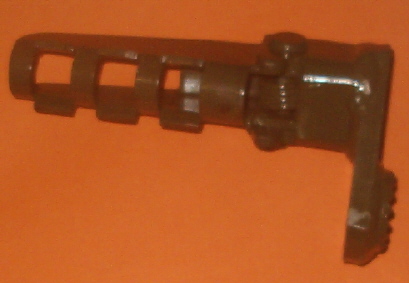

28 Voetsteun inklapbaar nieuw 17,50
Voetsteun inklapbaar occ. 14,00
30 Bout M12 x 35 0,30

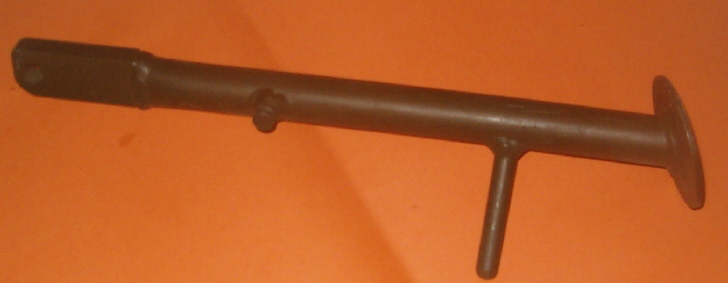

31 Staander nieuw 16,00
32 Veer voor staander 6,50

BILDTAFEL 26

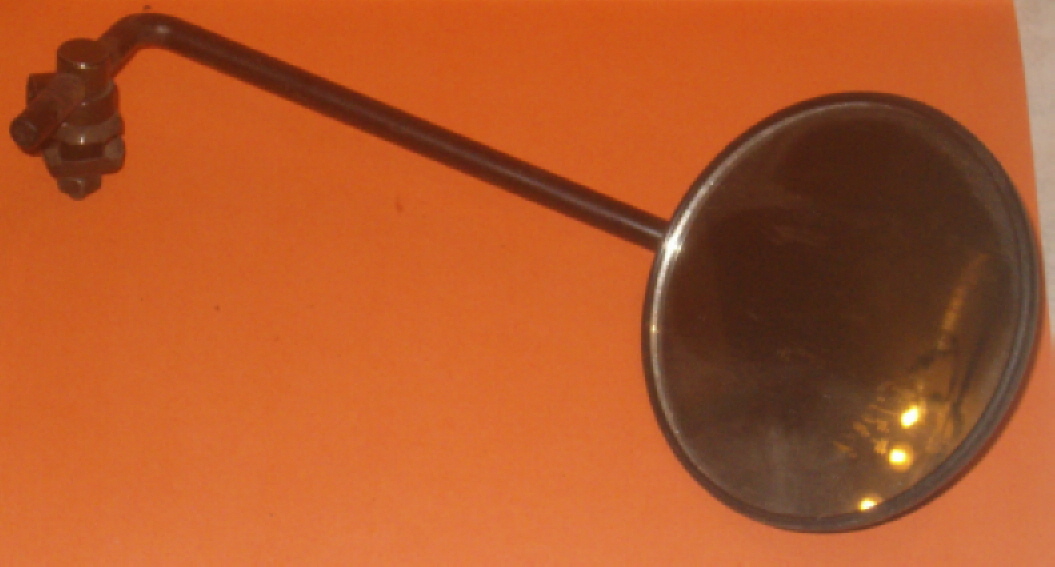

1 Spiegel zwart compleet occ. 13,00
Spiegelkop zwart occ. 9,00
Spiegelkop kaki-groen occ. 10,00
2 Kilometerteller VDO nieuw 66,00
4 Kilometertellerkabel 17,00
Kilometertellerkabel nieuw 850 mm voor bromfietsen (kleine aansluiting bovenaan) 7,00
5 Houder voor kilometerteller 0,50

BILDTAFEL 27
1 Zijtas leder occ. *
Zijkoffer plastiek (V2) nieuw compleet met 2 sloten 50,00
2 Lederriempje occ. 0,50
6 Werktuigtas  (leeg) oprolbaar origineel 40x40 5,50
6 Werktuigtas  oprolbaar gevuld BT27 nrs. 6 --> 24 *75,00
7 Steeksleutel 8/10 origineel occ. 4,00
8 Steeksleutel 11/13 origineel occ. 4,50
9 Steeksleutel 14/17 origineel occ. 5,00
10 Steeksleutel 19/22 origineel occ. 5,50
11 Steeksleutel 27/32 origineel occ. 6,00
12 Kettingpons origineel 12,00
13 Kettingreparatursetje (slotje, 2x 1/2 kettingschakel) 3,50
14 Bandentrekker origineel occ. 6,00
15 Bougieborsteltje 3,00
16 Schroevendraaier groot occ. 4,00
17 Schroevendraaier klein occ. 3,00
18 Tang origineel occ. 5,00
19 Stang voor nr. 20 en nr. 21 1,50
20 Dopsleutel 21 (voor bougie) 3,00
21 Dopsleutel 13/17 3,00
23 Reparaturset banden 3,50
24 Olieflesje 3,50
25 Originele pomp occ. 11,50
26 Kabelslot origineel occ. 5,00
27 Slot met sleutel origineel occ. 3,50
28 Verduisterringskapje voorlicht rond 130 mm occ. 8,40
29 Verduisteringskapje achterlicht zeshoekig occ. 4,00
29 Verduisteringskapje achterlicht zeshoekig nieuw 8,50
Verduisteringskapje richtingaanwijzers vierkant (V2) 1,20
30 Stopbordje origineel nieuw 9,00
Doosje voor reservelampjes (origineel) 9,00
Helm met scherm 'SCHUBERT' (origineel Westduits leger)  56/57  -  58/59  -   60/61 55,00
Helm met scherm 'Römer' (origineel Westduits leger) 55/56  -  57/58  -  59/60 55,00
Helm 'Busch' *55,00

Literatuur

Reparaturanleitung Nr. 336.8/2 Ausgabe Oktober 1972 für Sachs 1001/5A - 1251/5A - 1251/5B (ausf. NHW - Military) - 1001/6A - 1251/6A - 1001/6B - 1251/6B - 1251/6C                                                          (kopie boekje A5-formaat - 61 pagina's)

6,00

Reparaturanleitung - Repair Manual - Manuel de Réparations Nr. 336.8/3 D-E-F                                 Ausgabe Februar 1979 voor Sachs 1001/5A - 1251/5A - 1251/5B (ausf. NHW - Military) - 1001/6A - 1251/6A - 1001/6B - 1251/6B - 1251/6C                                                                                                             (gebonden kopie in Duits/Engels/Frans A4-formaat - 86 pagina's)

12,00
Ersatsteile-liste K125 Military - Marz 1971                                                                                                (gebonden kopie met Bildtafeln in  A4-formaat - 61 pagina's) 10,00
Reparaturanleitung TDv 2340/004-34 Kraftrad K125 V1 und V2                                                            (gebonden kopie in  A4-formaat - 152 pagina's) 15,00
Ersatzteile-Liste Nr.336.6/5  Ausgabe juli 1972  für Sachs 1001/5A - 1251/5A - 1251/5AL - 1251/5B ausf. NHW-Miliray - 1001/6A - 1251/6A - 1251/6B   (kopie boekje A5-formaat - 29 pagina's) 4,00

Repair Instructions No. 336.8 E  SACHS 1001/5A - 1251/5A  Edition October 1968                                (kopie boekje A5-formaat - 55 pagina's)

6,00

Betriebsanleitung Nr.427 008 00 01 K 125 Military mit SACHS 1251/5B                                                     (kopie klein boekje - 33 pagina's)

5,00

verzending











onderdelenlijst

e-mail
